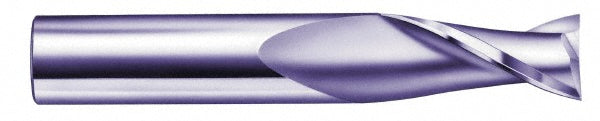

5/8" 2-Flute Solid Carbide Square End Mill - SGS 35293
MFR# 35293Series 52
$131.90List $169.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
Description
The SGS 35293 is a 5/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 52.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
