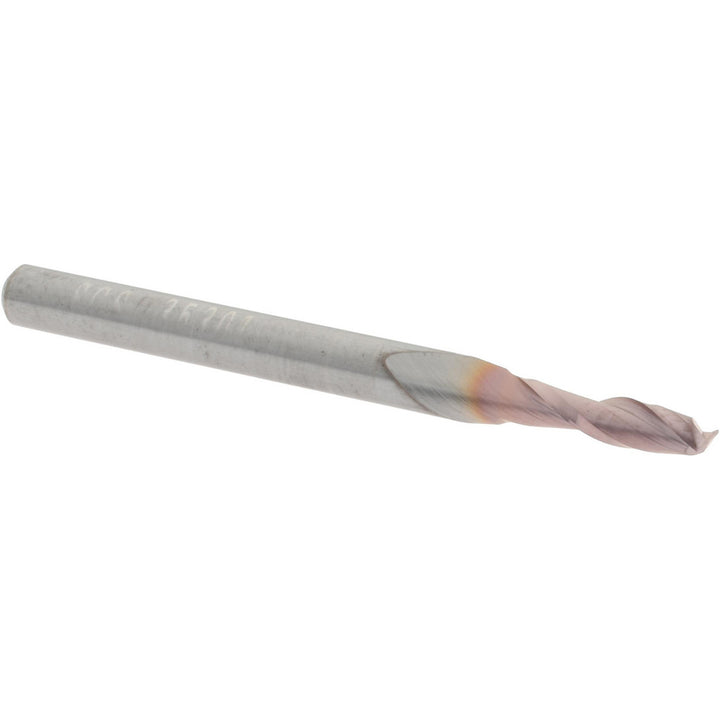

3/32" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35301

SGS

3/32" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35301

MFR# 35301Series 52

$19.15List $24.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35301 is a 3/32 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series 52.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeRegular
Mill diameter in3/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in1-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/32" 2-Flute Solid Carbide Square End Mill - OSG 402-0939 $12.64 Titan USA3/32" 2-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC10106 $13.25 OSG3/32" 2-Flute Solid Carbide Square End Mill - OSG 70200516 $116.88 Melin Tool0.0938" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11625 $16.25
