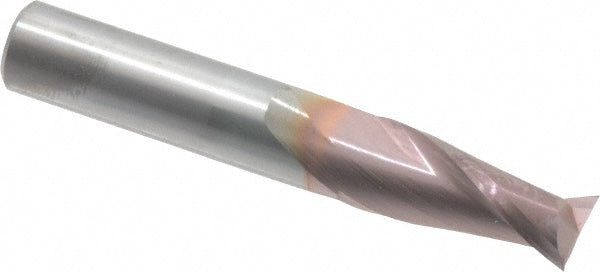

7/16" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35310

SGS

7/16" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35310

MFR# 35310Series 52

$71.63List $91.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35310 is a 7/16 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 2-3/4 overall length. Series 52.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-3/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
