SGS

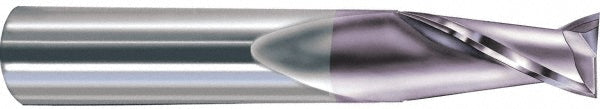

5/8" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35313

MFR# 35313Series 52

$155.58List $199.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 35313 is a 5/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 52.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes2

Overall length in3-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
