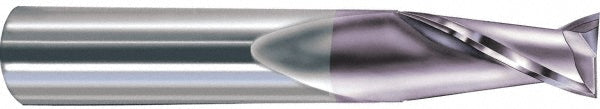

1" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35315

SGS

1" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 35315

MFR# 35315Series 52

$381.07List $488.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35315 is a 1 2-flute Solid Carbide square end mill. 1-1/2 length of cut, 4 overall length. Series 52.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in4
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051 in
Variable helixNo
Variable indexNo
