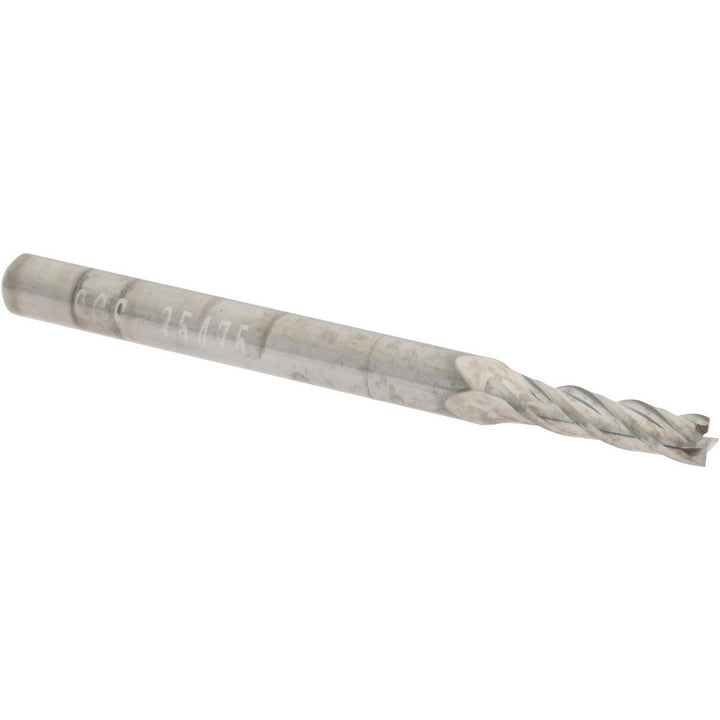

3/32" 4-Flute Solid Carbide Square End Mill - SGS 35475

SGS

3/32" 4-Flute Solid Carbide Square End Mill - SGS 35475

MFR# 35475Series 54

$16.14List $20.69 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide

Description

The SGS 35475 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
