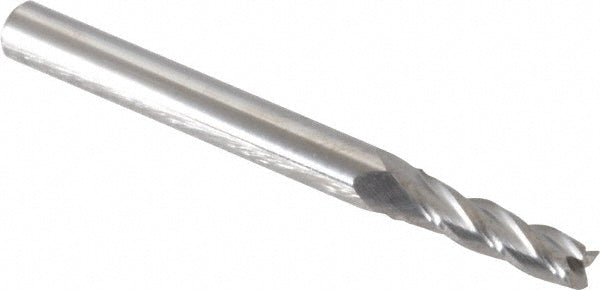

5/32" 4-Flute Solid Carbide Square End Mill - SGS 35478

SGS

5/32" 4-Flute Solid Carbide Square End Mill - SGS 35478

MFR# SGS-35478Series 54

$16.43List $21.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide

Description

The SGS 35478 is a 5/32 4-flute Solid Carbide square end mill. 9/16 length of cut, 2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Variable helixNo
Variable indexNo
