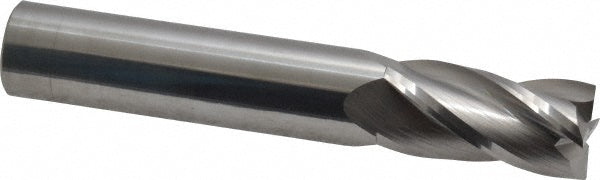

1/2" 4-Flute Solid Carbide Square End Mill - SGS 35489

SGS

1/2" 4-Flute Solid Carbide Square End Mill - SGS 35489

MFR# 35489Series 54

$83.56List $105.31 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide

Description

The SGS 35489 is a 1/2 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 3 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
