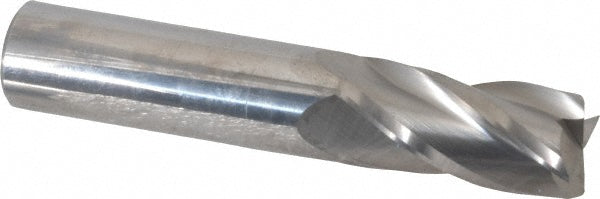

3/4" 4-Flute Solid Carbide Square End Mill - SGS 35495

SGS

3/4" 4-Flute Solid Carbide Square End Mill - SGS 35495

MFR# 35495Series 54

$193.15List $247.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

The SGS 35495 is a 3/4 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
