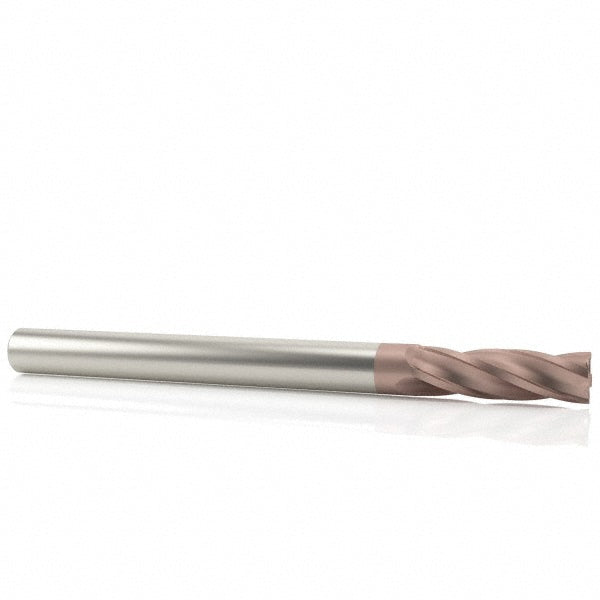

1/4" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35506

SGS

1/4" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35506

MFR# 35506Series 54

$34.49List $44.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35506 is a 1/4 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
