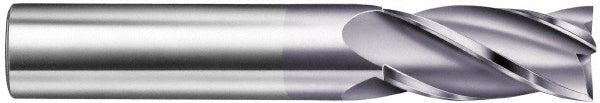

9/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35507

SGS

9/32" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35507

MFR# 35507Series 54

$39.45List $50.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 35507 is a 9/32 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Mill diameter in9/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Cleveland9/32" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32583 $36.39 RobbJack9/32" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-09 $48.14 M.A. Ford.9/32" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11128120 $43.81 Cleveland9/32" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33195 $40.33
