SGS

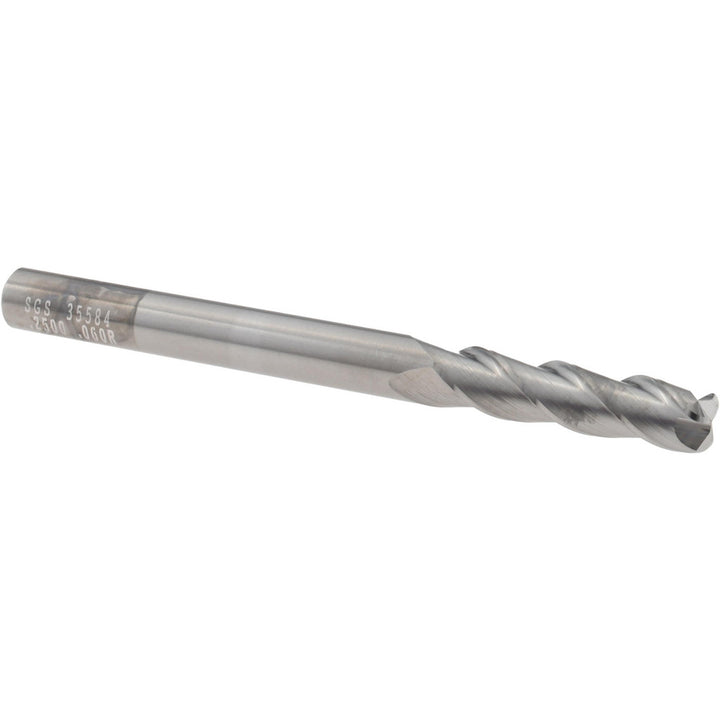

1/4" 3-Flute Solid Carbide Corner Radius End Mill - SGS 35584
MFR# 35584Series 43CR
$40.94List $52.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 35584 is a 1/4 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 3 overall length. Series 43CR.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0600
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1
Length typeLong
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance-0.0004/0.0000 in
Number of flutes3
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
