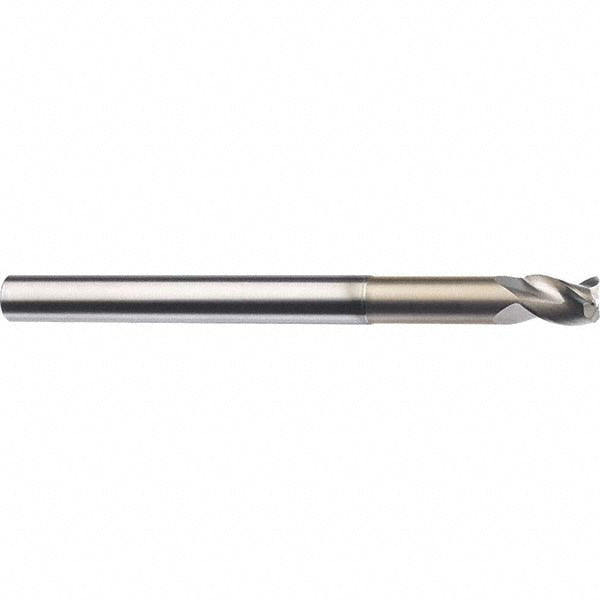

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 35683

Name: 3/8" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 35683
Brand: SGS
SKU: 35683
Price: 131.92 USD
Availability: InStock

MFR# 35683Series 43CR

$131.92List $166.25 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingTIB2

Description

The SGS 35683 is a 3/8 3-flute Solid Carbide corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series 43CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTIB2

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-1/2

Length typeLong

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance-0.0004/0.0000 in

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
