SGS

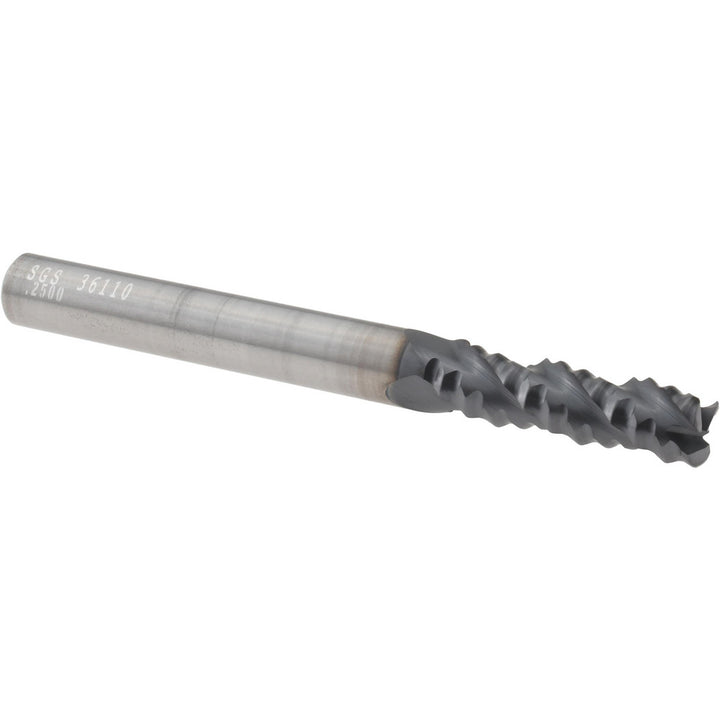

0.25" 3-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 36110
MFR# 36110Series 61
$87.93List $112.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 36110 is a 0.25 3-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series 61.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0450
Corner radius tolerance+0.00500 to -0.00500 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.7500
Length typeRegular
Material gradeMicrograin
Maximum helix angle30
Mill diameter0.25
Mill diameter frac in1/4
Mill diameter tolerance+0.000000 to -0.004000 in
Number of flutes3
PitchCoarse
Shank diameter in1/4
Shank diameter tolerance+0.00000 to -0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
