SGS

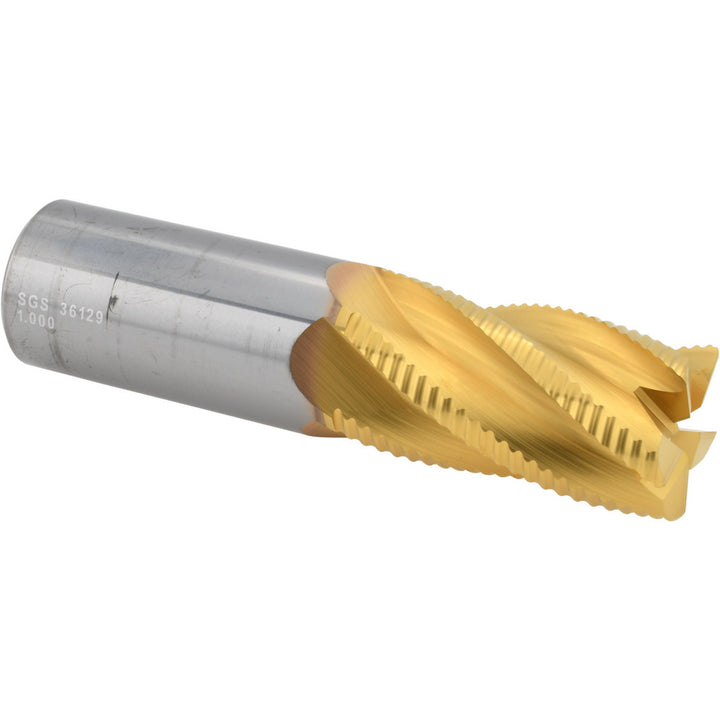

1" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 36129
MFR# 36129Series 61
$480.79List $616.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiN
Description
The SGS 36129 is a 1 5-flute Solid Carbide (Micrograin) roughing end mill with a TiN finish for longer tool life. Series 61.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishTiN
Corner radius0.0600
Corner radius tolerance+0.00500 to -0.00500 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.7500
Length typeRegular
Material gradeMicrograin
Maximum helix angle30
Mill diameter1
Mill diameter frac in1
Mill diameter tolerance+0.000000 to -0.004000 in
Number of flutes5
PitchCoarse
Shank diameter in1
Shank diameter tolerance+0.00000 to -0.00051 in
Shank typeStraight-Cylindrical
Single or double endSingle
