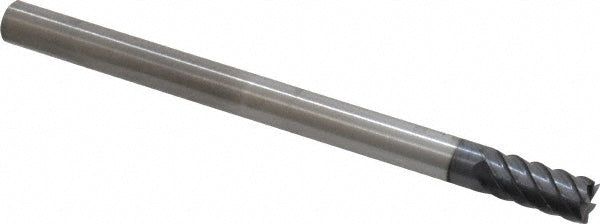

1/4" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36140

SGS

1/4" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36140

MFR# 36140Series 57

$89.45List $114.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36140 is a 1/4 6-flute Solid Carbide square end mill. Suited for hard material. 17/32 length of cut, 3-1/2 overall length. Series 57.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in17/32
Length typeExtra Long
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0012 in
Number of flutes6
Overall length in3-1/2
Primary workpiece materialHard Material
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
