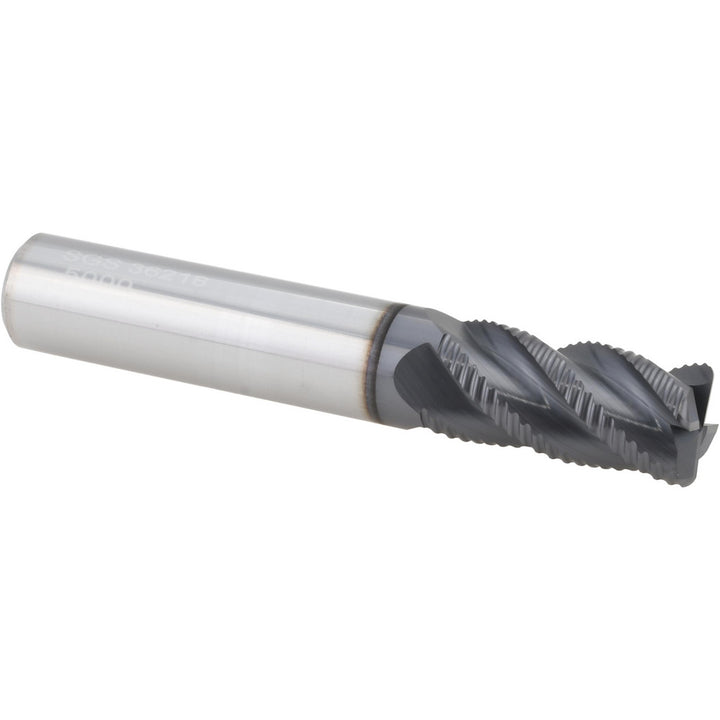

0.5" 4-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 36218
MFR# 36218Series 62
$162.82List $208.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 36218 is a 0.5 4-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series 62.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0600
Corner radius tolerance+0.00500 to -0.00500 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.0000
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000000 to -0.004000 in
Number of flutes4
PitchCoarse
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Shank typeWeldon Flat
Single or double endSingle
