SGS

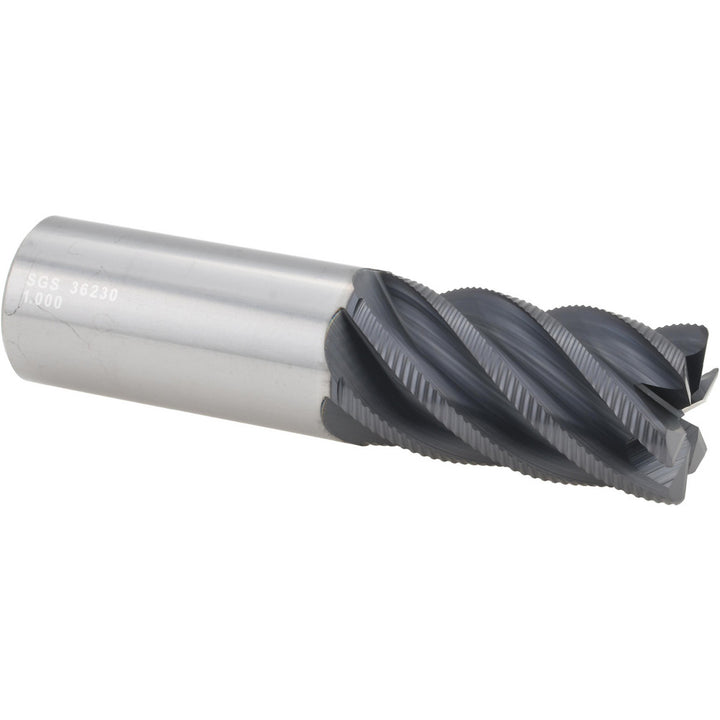

1" 6-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 36230
MFR# SGS-36230Series 62
$439.75List $564.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 36230 is a 1 6-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series 62.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0600
Corner radius tolerance+0.00500 to -0.00500 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.7500
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter1
Mill diameter frac in1
Mill diameter tolerance+0.000000 to -0.004000 in
Number of flutes6
PitchCoarse
Shank diameter in1
Shank diameter tolerance+0.00000 to -0.00051 in
Shank typeWeldon Flat
Single or double endSingle
