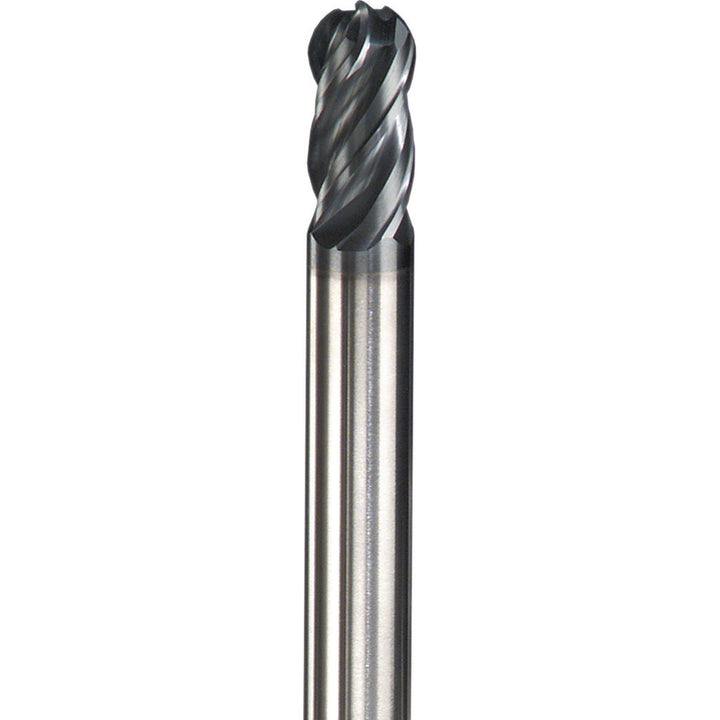

9/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36353

SGS

9/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36353

MFR# 36353Series Z1B

$51.44List $65.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36353 is a 9/32 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series Z1B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angleVariable
Helix styleVariable
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in9/32
Mill diameter tolerance+0.0000 to -0.0016 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixYes
Variable indexYes
