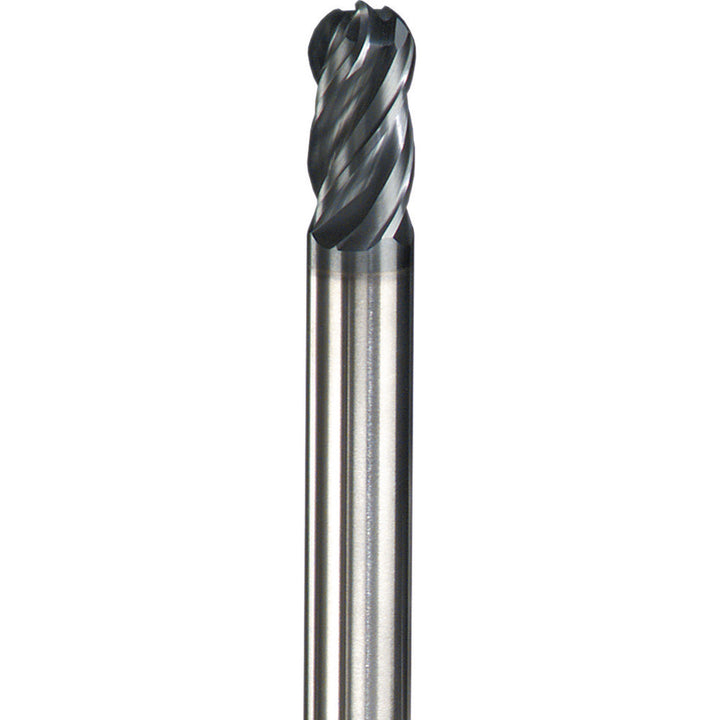

13/32" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36355
MFR# 36355Series Z1B
$98.92List $124.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter13/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 36355 is a 13/32 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 15/16 length of cut, 2-3/4 overall length. Series Z1B.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angleVariable
Helix styleVariable
Length of cut in15/16
Length typeRegular
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in13/32
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixYes
Variable indexYes
