13/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36426

SGS

13/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36426

MFR# 36426Series Z1

$80.52List $103.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

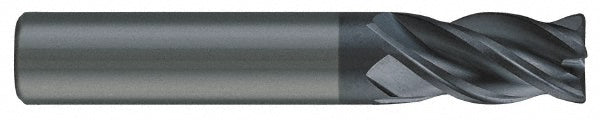

The SGS 36426 is a 13/32 4-flute Solid Carbide (Micrograin) square end mill. 15/16 length of cut, 2-3/4 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in15/16
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in13/32
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
