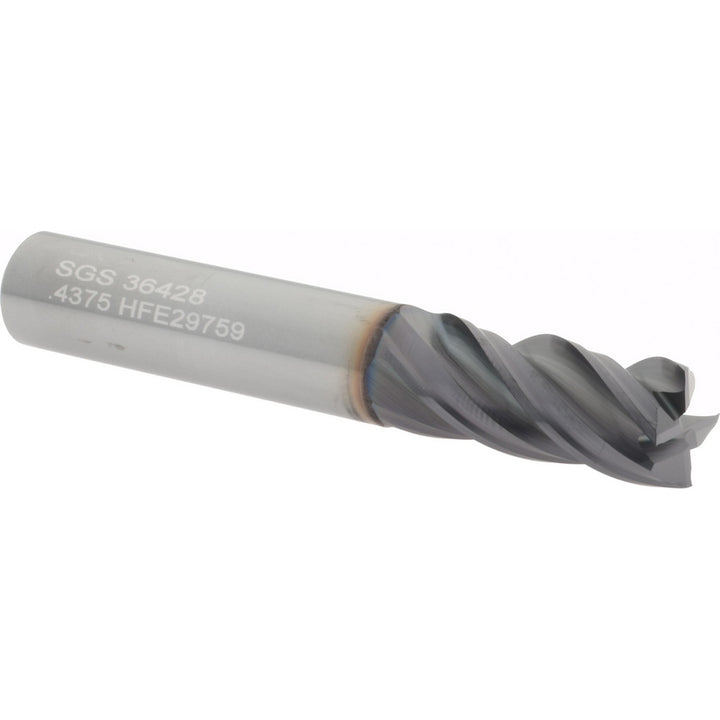

7/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36428

SGS

7/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36428

MFR# 36428Series Z1

$80.61List $103.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36428 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
