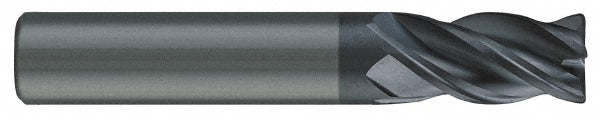

15/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36430

SGS

15/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36430

MFR# 36430Series Z1

$95.50List $122.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36430 is a 15/32 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in15/32
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
