SGS

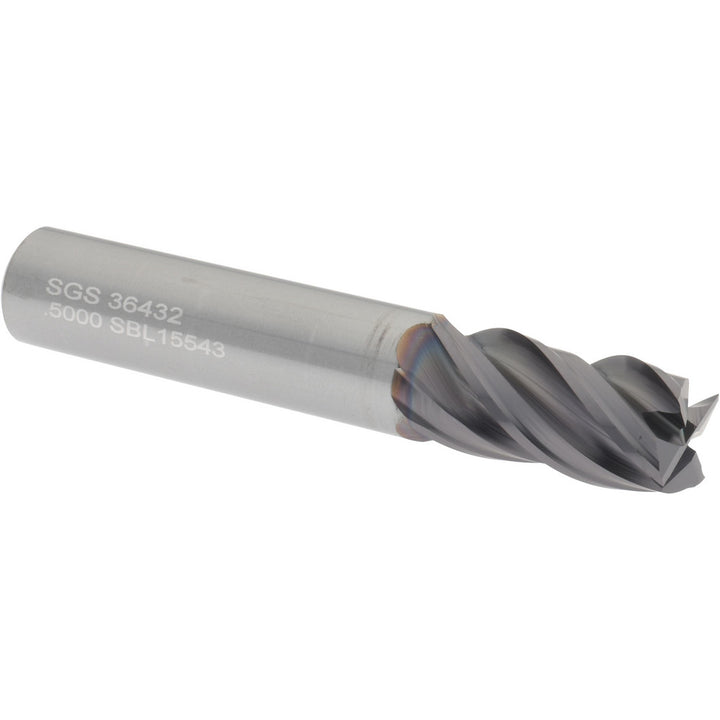

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36432

MFR# 36432Series Z1

$97.53List $125.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36432 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z1.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in3

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
