SGS

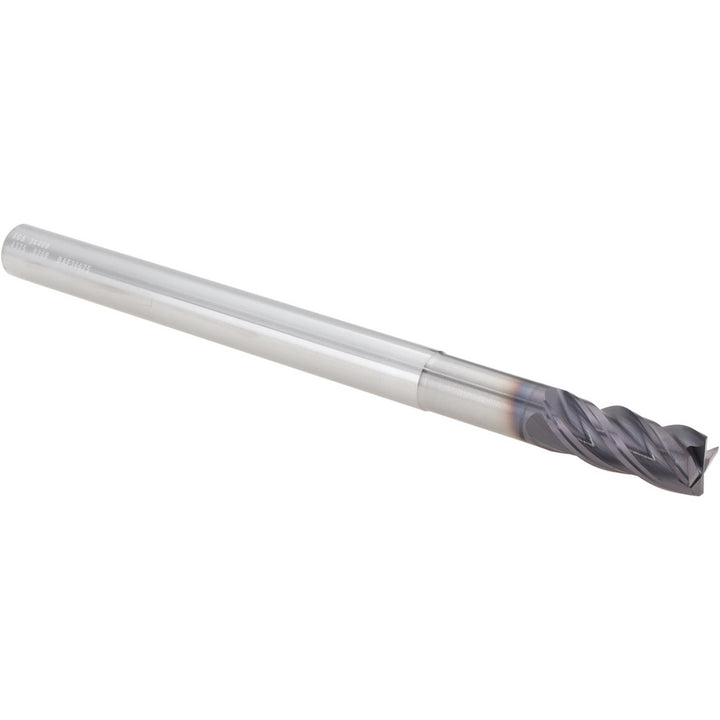

7/16" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36460

MFR# 36460Series ZPCR

$74.07List $95.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 36460 is a 7/16 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 6 overall length. Series ZPCR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in1

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in7/16

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.4180

Number of flutes4

Overall length in6

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in2

Secondary workpiece materialHard Material

Shank diameter in7/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
