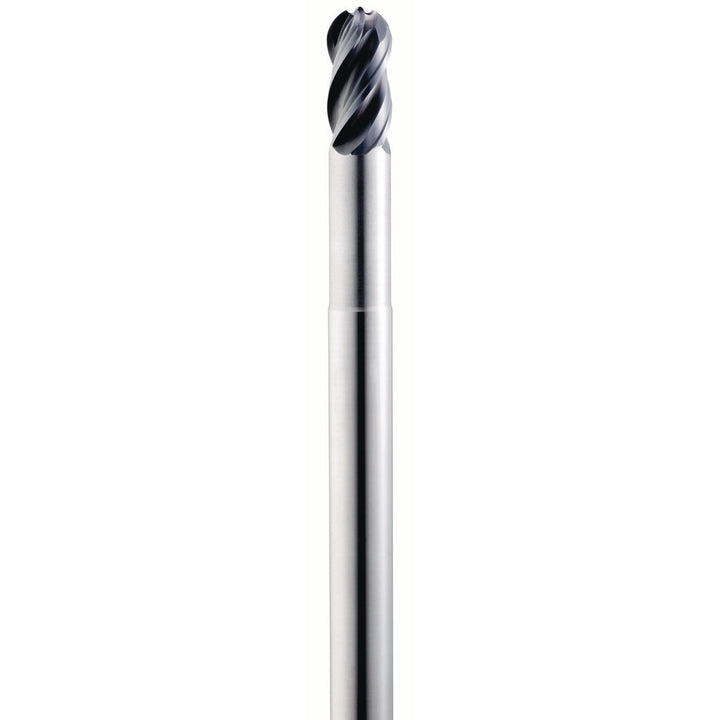

3/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36502

SGS

3/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36502

MFR# 36502Series Z1PLB

$378.37List $485.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36502 is a 3/4 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/2 length of cut, 6 overall length. Series Z1PLB.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angleVariable
Helix styleVariable
Length of cut in1-1/2
Length typeLong
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/4
Mill diameter tolerance+0.0000 to -0.0020 in
Neck diameter0.7300
Neck length in2
Number of flutes4
Overall length in6
Reach length in3-1/2
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixYes
Variable indexYes
