15/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36533

SGS

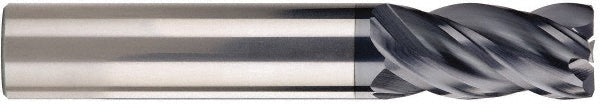

15/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36533

MFR# 36533Series Z1

$96.65List $123.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36533 is a 15/32 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in15/32
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3
Shank diameter in15/32
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeWeldon Flat
Variable helixYes
Variable indexYes
