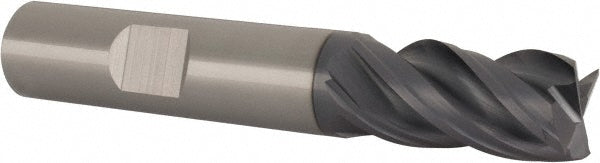

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36534
MFR# 36534Series Z1
$96.89List $124.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 36534 is a 1/2 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z1.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeWeldon Flat
Variable helixYes
Variable indexYes
