3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36537

SGS

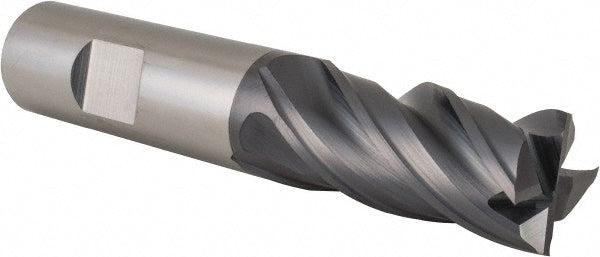

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36537

MFR# 36537Series Z1

$269.10List $345.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36537 is a 3/4 4-flute Solid Carbide square end mill. 1-1/2 length of cut, 4 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in3/4
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeWeldon Flat
Variable helixYes
Variable indexYes
