3/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36539

SGS

3/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36539

MFR# 36539Series Z1B

$60.35List $77.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

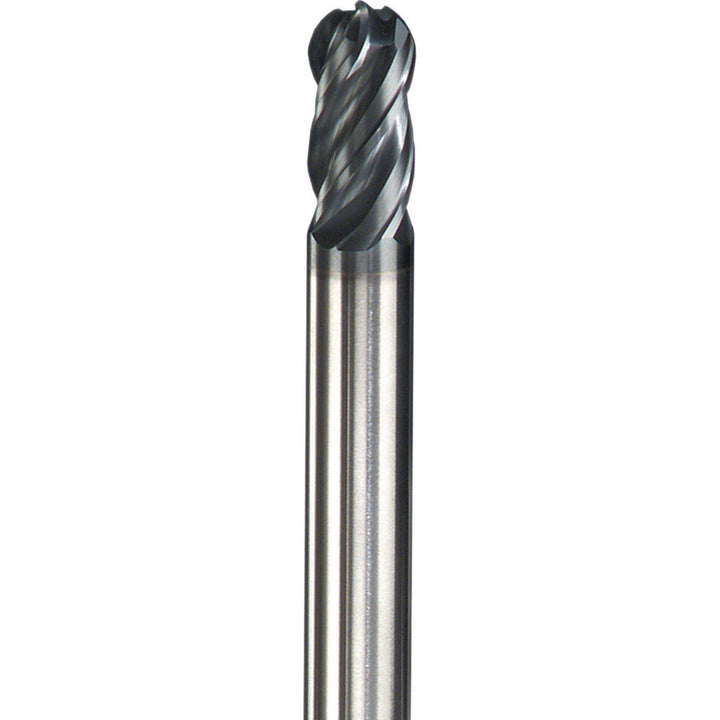

The SGS 36539 is a 3/8 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 7/8 length of cut, 2-1/2 overall length. Series Z1B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in7/8
Length typeRegular
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0016 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Single or double endSingle
Variable helixYes
Variable indexYes
