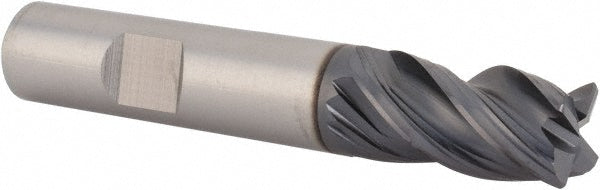

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 36574

SGS

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 36574

MFR# 36574Series ZH1C

$102.12List $130.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36574 is a 1/2in 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1in length of cut, 3in overall length. Series ZH1C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1in
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in3in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
