3/16" 7-Flute Solid Carbide Square End Mill, AlTiN - SGS 36620

SGS

3/16" 7-Flute Solid Carbide Square End Mill, AlTiN - SGS 36620

MFR# 36620Series 66

$41.13List $52.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

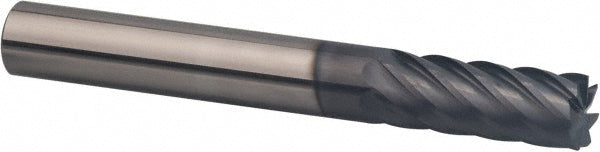

The SGS 36620 is a 3/16 7-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 66.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes7
Overall length in2
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
