1/4" 7-Flute Solid Carbide Square End Mill, AlTiN - SGS 36621

SGS

1/4" 7-Flute Solid Carbide Square End Mill, AlTiN - SGS 36621

MFR# 36621Series 66

$45.12List $57.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

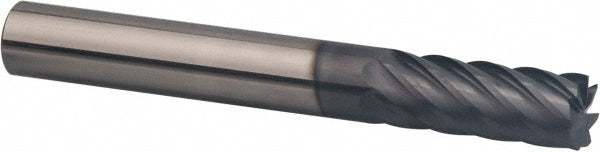

The SGS 36621 is a 1/4 7-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 66.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes7
Overall length in2-1/2
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
