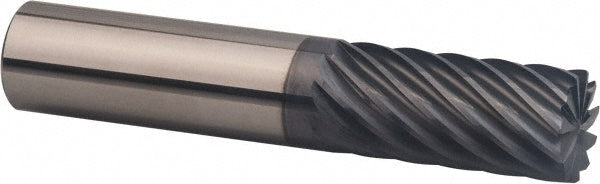

3/4in" 11-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36636

SGS

3/4in" 11-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36636

MFR# 36636Series 66C

$366.27List $469.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4in
Flutes11
MaterialSolid Carbide
CoatingTX

Description

The SGS 36636 is a 3/4in 11-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8in length of cut, 4in overall length. Series 66C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in1-5/8in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/4in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes11
Overall length in4in
PitchSuper Close
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
