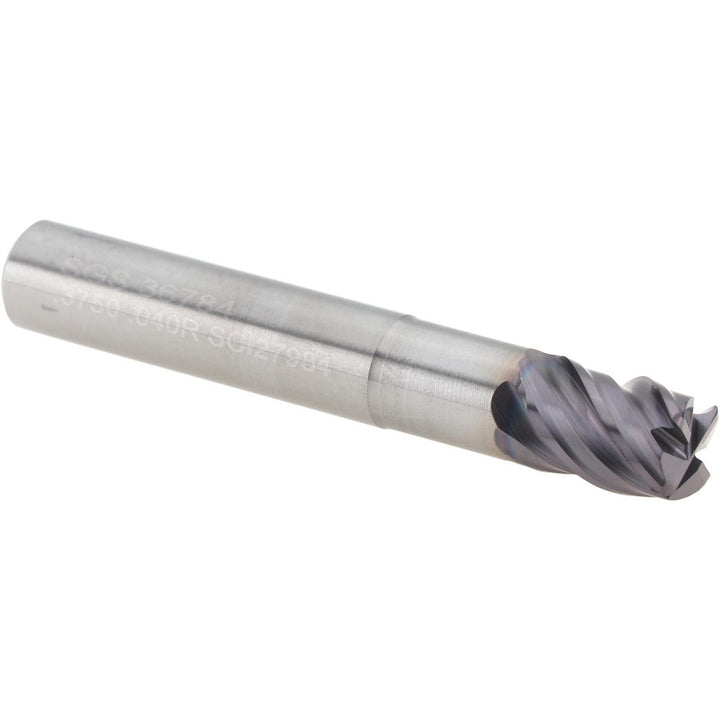

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36784

SGS

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36784

MFR# 36784Series ZD1C

$70.42List $90.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 36784 is a 3/8 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. 15/32 length of cut, 2-1/2 overall length. Series ZD1C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0400
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in15/32
Length typeShort
Material applicationCast Iron; Hard Material; Steel
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0016/0.0000 in
Neck diameter0.3600
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialCast Iron; Hard Material
Reach length in1
Secondary workpiece materialSteel
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
