SGS

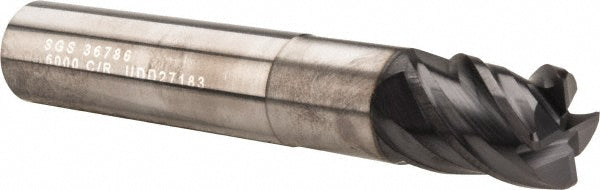

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36786
MFR# 36786Series ZD1C
$134.80List $169.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTX
Description
The SGS 36786 is a 1/2in 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. 5/8in length of cut, 3in overall length. Series ZD1C.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in5/8in
Length typeShort
Material applicationCast Iron; Hard Material; Steel
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance-0.0020/0.0000 in
Neck diameter0.4850in
Number of flutes4
Overall length in3in
PitchNormal
Primary workpiece materialCast Iron; Hard Material
Reach length in1-1/4
Secondary workpiece materialSteel
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
