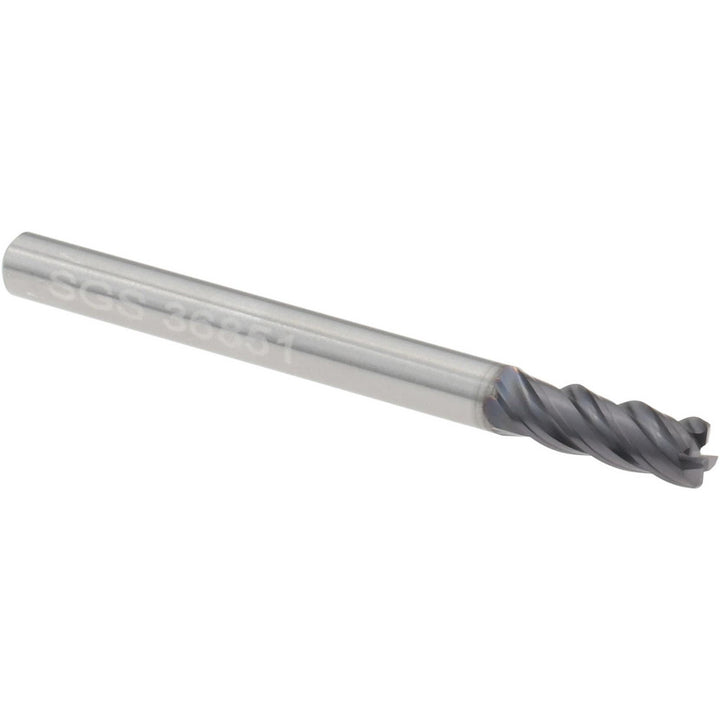

1/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36851

MFR# 36851Series ZPCR

$21.31List $27.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 36851 is a 1/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/8 length of cut, 1-1/2 overall length. Series ZPCR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in3/8

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance-0.0012/0.0000 in

Number of flutes4

Overall length in1-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
