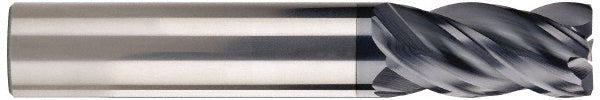

9/16in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36868

SGS

9/16in" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36868

MFR# 36868Series ZPCR

$176.14List $225.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16in
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 36868 is a 9/16in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/8in length of cut, 3-1/2in overall length. Series ZPCR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1-1/8in
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in9/16in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in3-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in9/16in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
