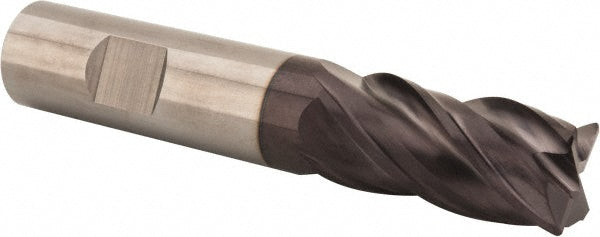

3/4" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36870

SGS

3/4" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36870

MFR# 36870Series ZPCR

$281.75List $361.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 36870 is a 3/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series ZPCR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in1-1/2
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
