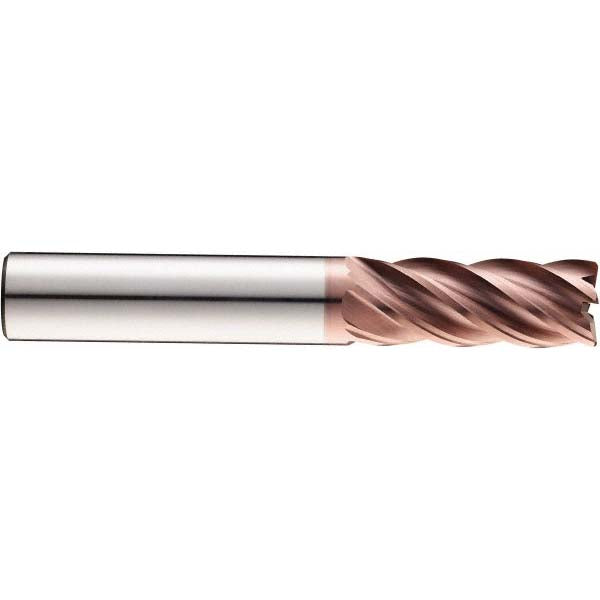

0.1250" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37003

SGS

0.1250" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37003

MFR# 37003Series Z5CR

$35.73List $45.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiN

Description

The SGS 37003 is a 0.1250 5-flute Solid Carbide roughing end mill with a TiN finish for longer tool life. 1-1/2 overall length. Series Z5CR.

Specifications

CentercuttingNo
Coating finishTiN
Corner radius0.0150
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.3750
Maximum helix angle37
Mill diameter0.1250
Mill diameter frac in1/8
Mill diameter tolerance+0.000000 to -0.001200 in
Number of flutes5
Overall length in1-1/2
PitchVariable
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
