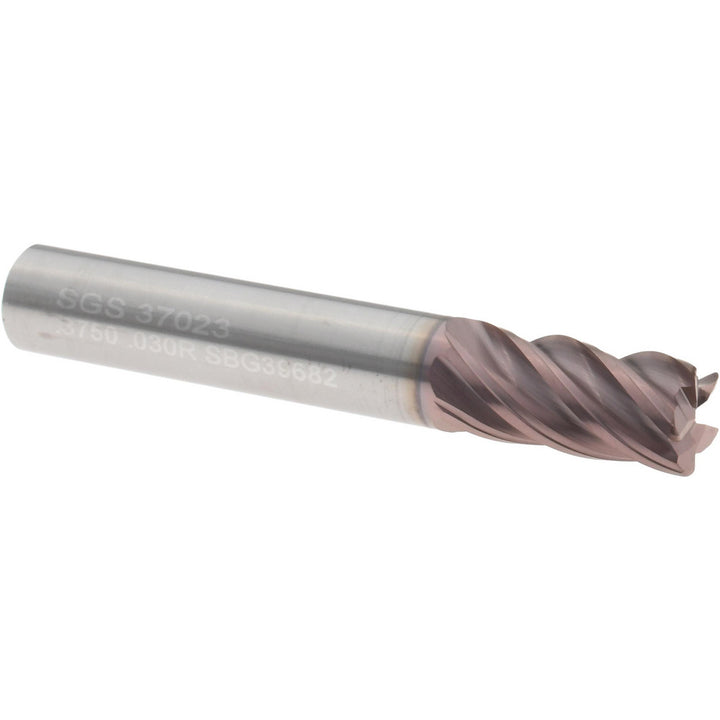

0.375" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37023

SGS

0.375" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37023

MFR# 37023Series Z5CR

$76.18List $97.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiN

Description

The SGS 37023 is a 0.375 5-flute Solid Carbide roughing end mill with a TiN finish for longer tool life. Series Z5CR.

Specifications

CentercuttingNo
Coating finishTiN
Coolant throughYes
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.7500
Maximum helix angle37
Mill diameter0.375
Mill diameter frac in3/8
Mill diameter tolerance+0.000000 to -0.001600 in
Number of flutes5
PitchVariable
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
