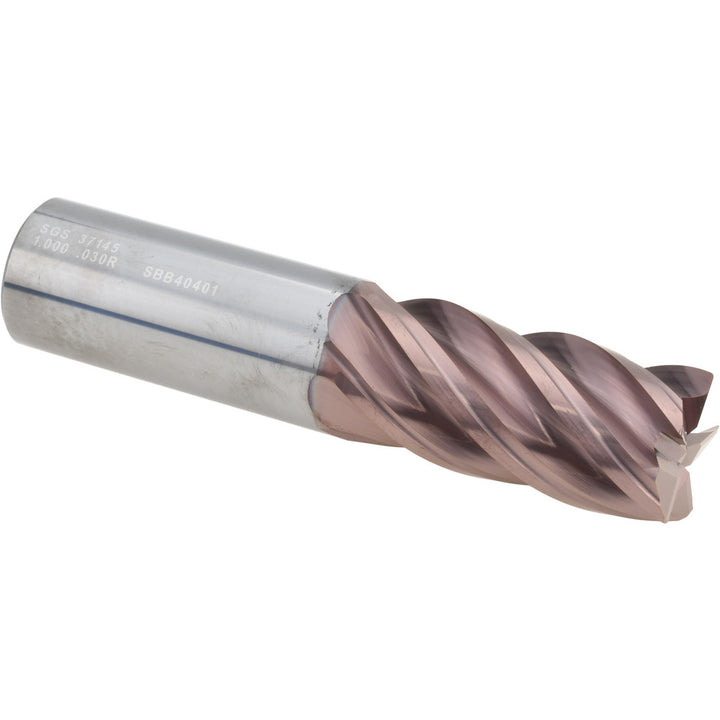

1" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37145

SGS

1" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37145

MFR# 37145Series Z5CR

$554.55List $711.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiN

Description

The SGS 37145 is a 1 5-flute Solid Carbide roughing end mill with a TiN finish for longer tool life. Series Z5CR.

Specifications

CentercuttingNo
Coating finishTiN
Coolant throughYes
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut2.0000
Length typeRegular
Maximum helix angle37
Mill diameter1
Mill diameter frac in1
Mill diameter tolerance-0.000000 to -0.002000 in
Number of flutes5
PitchVariable
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
