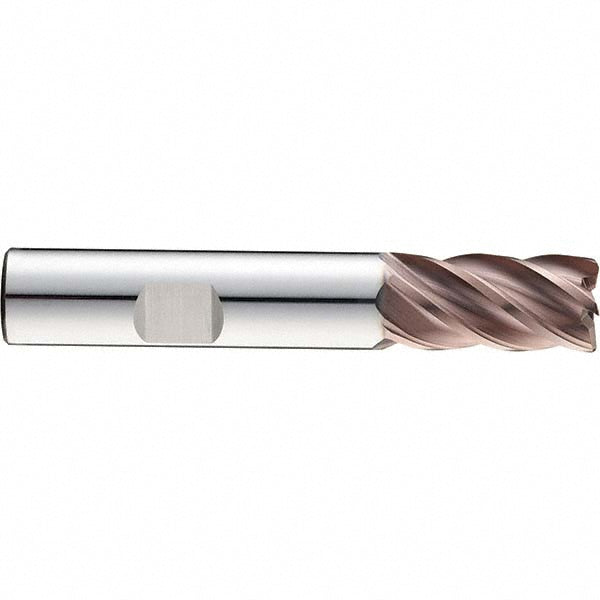

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 37322

SGS

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 37322

MFR# 37322Series Z5S

$140.22List $179.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 37322 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z5S.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000 to -0.0012 in
Number of flutes5
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
