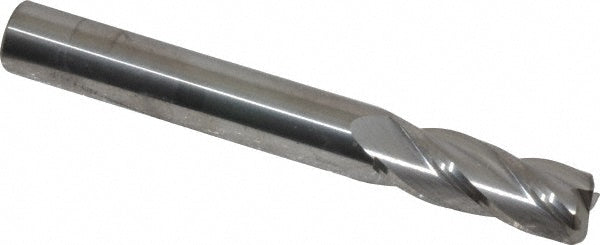

5/16" 4-Flute Solid Carbide Corner Radius End Mill - SGS 38037

MFR# 38037Series 01C

$42.43List $54.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingUncoated

Description

The SGS 38037 is a 5/16 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 13/16 length of cut, 2-1/2 overall length. Series 01C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0450

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleMedium

Length of cut in13/16

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance-0.0020 to -0.0010 in

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
