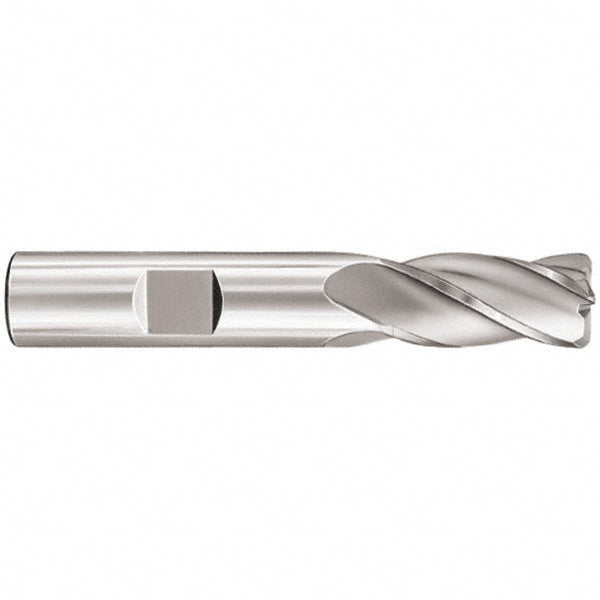

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiN - SGS 38064
MFR# 38064Series 01C
$124.56List $156.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiN
Description
The SGS 38064 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1 length of cut, 3 overall length. Series 01C.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleMedium
Length of cut in1
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0020 to -0.0010 in
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
