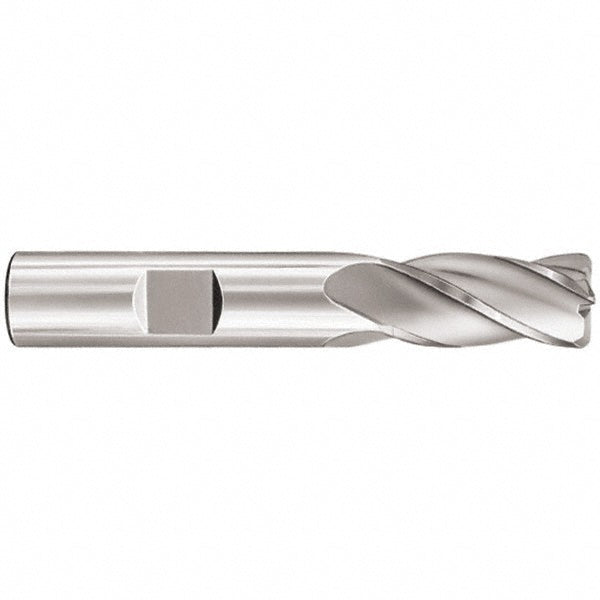

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38130

SGS

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38130

MFR# 38130Series 01C

$56.50List $72.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 38130 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1 length of cut, 2-1/2 overall length. Series 01C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleMedium
Length of cut in1
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0020 to -0.0010 in
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
