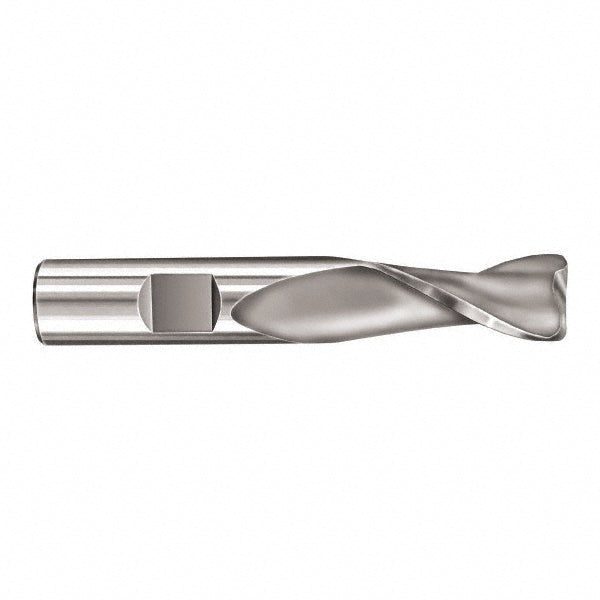

1/4in" 2-Flute Solid Carbide Corner Radius End Mill, TiN - SGS 38222

SGS

1/4in" 2-Flute Solid Carbide Corner Radius End Mill, TiN - SGS 38222

MFR# 38222Series 03C

$43.09List $54.30 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingTiN

Description

The SGS 38222 is a 1/4in 2-flute Solid Carbide (Micrograin) corner radius end mill with a TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 3/4in length of cut, 2-1/2in overall length. Series 03C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in3/4in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1/4in
Mill diameter tolerance-0.0020/-0.0010 in
Number of flutes2
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
