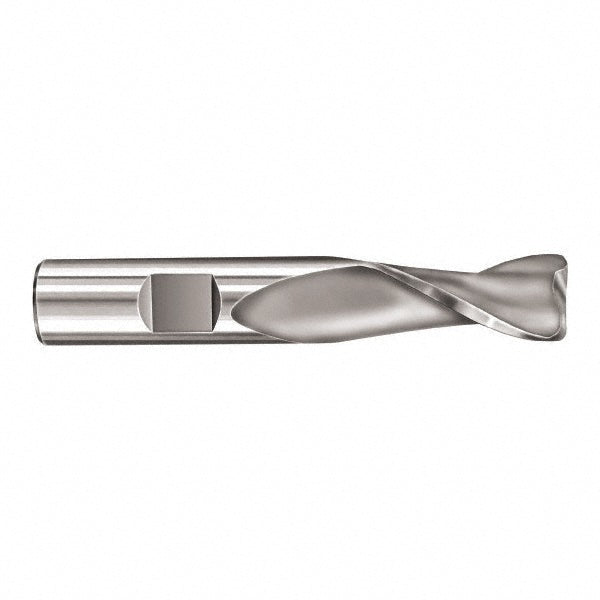

3/16in" 2-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38317

SGS

3/16in" 2-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38317

MFR# 38317Series 03C

$28.67List $36.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 38317 is a 3/16in 2-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 5/8in length of cut, 2in overall length. Series 03C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Corner radius0.0150
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in5/8in
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in3/16in
Mill diameter tolerance-0.0020/-0.0010 in
Number of flutes2
Overall length in2in
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
