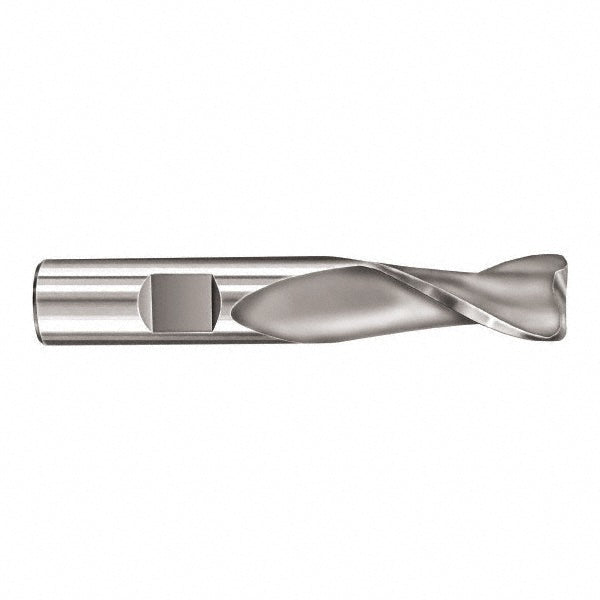

3/8in" 2-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38330

SGS

3/8in" 2-Flute Solid Carbide Corner Radius End Mill, TiCN - SGS 38330

MFR# 38330Series 03C

$56.58List $72.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes2
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 38330 is a 3/8in 2-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1in length of cut, 2-1/2in overall length. Series 03C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in1in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in3/8in
Mill diameter tolerance-0.0020/-0.0010 in
Number of flutes2
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
