SGS

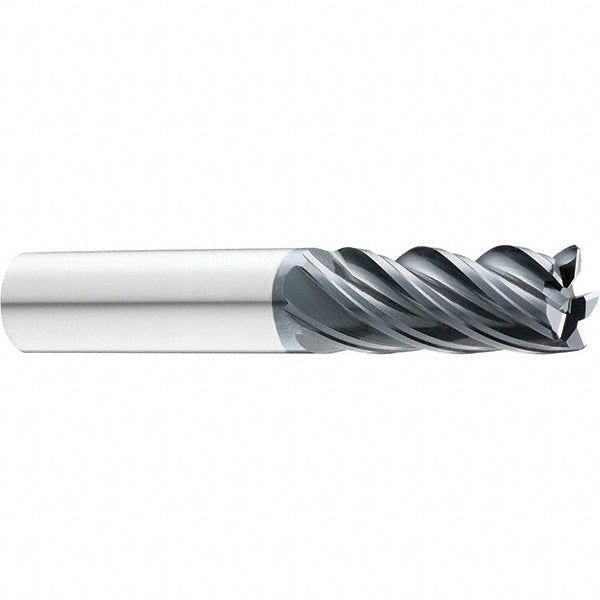

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 38502

MFR# 38502Series Z5S

$39.03List $50.06 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 38502 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/8 length of cut, 2-1/2 overall length. Series Z5S.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Length of cut in3/8

Length typeRegular

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0012 in

Number of flutes5

Overall length in2-1/2

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
